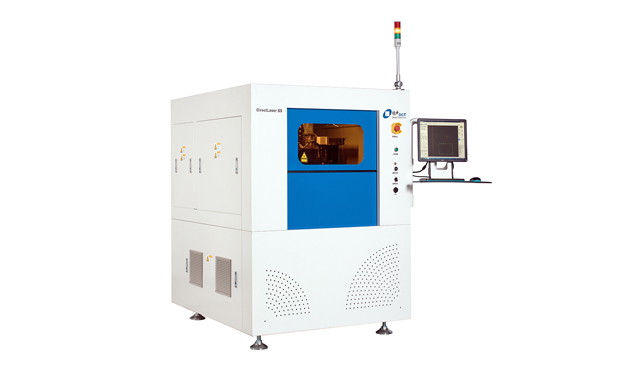

DirectLaser SF5 Universal Laser Precision Cutting Equipment
DirectLaser SF5 classic models of S series, the equipment using the classic bridge structure, the use of X/Y axis separation motion structure, processing head moves on a stable bridge around the X direction, workpiece clamping platform moves along the Y axis back-and-forth. Two axes are independent and not interfere with each other.
Features
Directly data driven
High level automation
Break through mechanical limits
Precise laser control
Cold cutting with picosecond Laser
Product parameters
Technical data | DirectLaser SF5 |
| Working area | 520mm x 500mm |
Platform | Granite table and linear motor |
Data acceptance | Gerbera, HPGL, Sieb & Meier, Excellon, ODB++, DXF |
Laser wavelength | 355nm or 532nm, optional |
Laser pulse width | From 800fs to 10ns dependent on laser source selection |
X/Y/Z resolution | 2μm |
Reapetative accuracy | ±2μm |
Dimension（W x H x D) | 1,560mm x 1,250mm x 1,915mm |
Weight | Approx. 1,500kg |
Data processing software | CircuitCAM 7 Standard |
Machine software | DreamCreaTor 3 |
Power requirements | 380VAC/50Hz,2.4kW |
Ambient temperature | 22℃±2℃ |
